Dissolved Air Flotation System

SDAF-High efficiency sedimentation DAF

We have standarized DAF products ,have 5 types in total.The left picture is our SDAF series.It has thoese main features: 1.Inclined plates installed can enhance the separation efficiency 2.Full coverage skimmer design 3.Suitable for high concentration solids 4.Design hydraulic loading rate:5-12m3/m2/h 5.Disadvantage is higher porice than other series

Introduction

High efficiency sedimentation Dissolved Air Flotation (DAF) has been known and applied widly as one of the most effective and economic ways to remove suspended solids (SS),fats, oils and grease (FOG), phosphorus (P) from industrial wastewaters by the generation of micro bubbles.
Jorsun DAF is an innovation combined with traditional high efficiency sedimentation dissolved air flotation design theory and modern technology after years of research and application.DAF is based on a physical / chemical process.Wastewater is dosed with treatment chemicals upstream of the DAF inlet to form flocs.

When those flocs enter to the DAF chamber,massive of microbubbles attach to the flocs, and bring them floating to the top.The floating solids are harvested by DAF’s top skimmer. After the separation process, clean effluent will be collected and discharged.
The generation of micro bubbles is through the air saturation vessel and air diffuser plates.A portion of the DAF effluent is recycled to the air saturation vessel to mix with air by venturi jet under high pressure,and form air dissovled water(white water) .When the air dissoveld water flow to the air diffuser plates, the sharp reduction of pressure will make the microbubbles release from the air dissolved water,and form massive microbbubles.

JORSUN’s SDAF is the perfect combination of sedimentation and DAF to achieve high efficient and solid-liquid sedimentation. It has inclined plates installed inside the tank.

JORSUN Dissolved Air Flotation Plants are successfully operated for a wide variety of industrial and municipal applications, such as:
B- Beverage; Biological effluent;
D- Dairy (milk,ice cream,yogurt etc);
E- Electrinic;
F- Farm; Food(noodle,cookie,bread ,starch,sauce,flavours and fragrances etc);
L- Leachate
M- Meat processing(chicken,beef etc) ; Mine; Municiple;
O- Oil refinery;
P- Package (fruit,shrimp,food etc); Painting; Paper; Pharmacy;
R- River; Rubber glove;
S- Semiconductor; Slaughter; Steel;
T- Textile and dyeing;
U- Underground water;
W- Washing wastewater(plastic,workshop,car,container etc) ;

● Maximum TSS,FOG removal efficiency with JORSUN high efficient air dissolved system (99.9% air releasing effiency).

● Experience from over 2,000 applications in a variety of fields.

● Minimize footprint with JORSUN compact design.

● Save installation time .JORSUN DAF units are deliveryed as prefabricated units . Very easy for installation.

● Quick in response to provide excellent international services.Served clients are over 50 countries aross the world.

● Various constructed material. Carbon steel epoxy coating or FRP lining, stainless steel SUS304 or SUS316L,duplex steel 2205 or 2507.

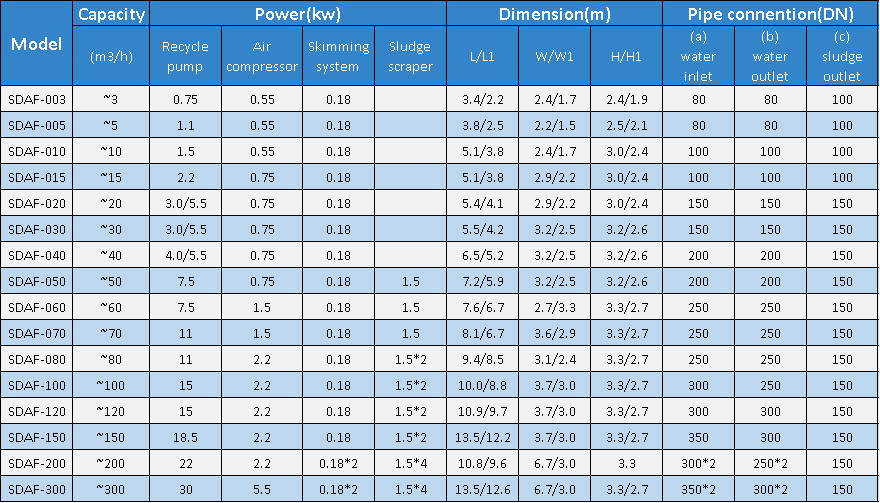

Model	Capacity	Power(kw)				Dimension(m)			Pipe connention(DN)
Model	(m3/h)	Recycle pump	Air compressor	Skimming system	Sludge scraper	L/L1	W/W1	H/H1	(a) water inlet	(b) water outlet	(c) sludge outlet
SDAF-003	~3	0.75	0.55	0.18		3.4/2.2	2.4/1.7	2.4/1.9	80	80	100
SDAF-005	~5	1.1	0.55	0.18		3.8/2.5	2.2/1.5	2.5/2.1	80	80	100
SDAF-010	~10	1.5	0.55	0.18		5.1/3.8	2.4/1.7	3.0/2.4	100	100	100
SDAF-015	~15	2.2	0.75	0.18		5.1/3.8	2.9/2.2	3.0/2.4	100	100	100
SDAF-020	~20	3.0/5.5	0.75	0.18		5.4/4.1	2.9/2.2	3.0/2.4	150	150	150
SDAF-030	~30	3.0/5.5	0.75	0.18		5.5/4.2	3.2/2.5	3.2/2.6	150	150	150
SDAF-040	~40	4.0/5.5	0.75	0.18		6.5/5.2	3.2/2.5	3.2/2.6	200	200	150
SDAF-050	~50	7.5	0.75	0.18	1.5	7.2/5.9	3.2/2.5	3.2/2.6	200	200	150
SDAF-060	~60	7.5	1.5	0.18	1.5	7.6/6.7	2.7/3.3	3.3/2.7	250	250	150
SDAF-070	~70	11	1.5	0.18	1.5	8.1/6.7	3.6/2.9	3.3/2.7	250	250	150
SDAF-080	~80	11	2.2	0.18	1.5*2	9.4/8.5	3.1/2.4	3.3/2.7	250	250	150
SDAF-100	~100	15	2.2	0.18	1.5*2	10.0/8.8	3.7/3.0	3.3/2.7	300	250	150
SDAF-120	~120	15	2.2	0.18	1.5*2	10.9/9.7	3.7/3.0	3.3/2.7	300	300	150
SDAF-150	~150	18.5	2.2	0.18	1.5*2	13.5/12.2	3.7/3.0	3.3/2.7	350	300	150
SDAF-200	~200	22	2.2	0.18*2	1.5*4	10.8/9.6	6.7/3.0	3.3	300*2	250*2	150
SDAF-300	~300	30	5.5	0.18*2	1.5*4	13.5/12.6	6.7/3.0	3.3/2.7	350*2	300*2	150
