IDAF/IDAF2-Integrated DAF/DAF2

We have standarized DAF products ,have 5 types in total.The left picture is our IDAF (flat bottom) /IDAF2 (slant bottom) series.It has thoese main features: 1.Perfect combination of chemical reaction device and DAF unit 2.Compact design for smaller footprint, and easier installation 3.The most cost-effective solution and the best seller series 4.Design hydraulic loading rate:4-6m3/m2/h

Introduction

Brief Introduction

Dissolved Air Flotation (DAF) has been known and applied widly as one of the most effective and economic ways to remove suspended solids (SS),fats, oils and grease (FOG), phosphorus (P) from industrial wastewaters by the generation of micro bubbles.
Jorsun DAF is an innovation combined with traditional dissolved air flotation design theory and modern technology after years of research and application.DAF is based on a physical / chemical process.Wastewater is dosed with treatment chemicals upstream of the DAF inlet to form flocs.

When those flocs enter to the DAF chamber,massive of microbubbles attach to the flocs, and bring them floating to the top.The floating solids are harvested by DAF’s top skimmer. After the separation process, clean effluent will be collected and discharged.
The generation of micro bubbles is through the air saturation vessel and air diffuser plates.A portion of the DAF effluent is recycled to the air saturation vessel to mix with air by venturi jet under high pressure,and form air dissovled water(white water) .When the air dissoveld water flow to the air diffuser plates, the sharp reduction of pressure will make the microbubbles release from the air dissolved water,and form massive microbbubles.

Applied Industry

JORSUN Dissolved Air Flotation Plants are successfully operated for a wide variety of industrial and municipal applications, such as:
B- Beverage; Biological effluent;
D- Dairy (milk,ice cream,yogurt etc);
E- Electrinic;
F- Farm; Food(noodle,cookie,bread ,starch,sauce,flavours and fragrances etc);
L- Leachate
M- Meat processing(chicken,beef etc) ; Mine; Municiple;
O- Oil refinery;
P- Package (fruit,shrimp,food etc); Painting; Paper; Pharmacy;
R- River; Rubber glove;
S- Semiconductor; Slaughter; Steel;
T- Textile and dyeing;
U- Underground water;
W- Washing wastewater(plastic,workshop,car,container etc) ;

Key features and benefits

Maximum TSS,FOG removal efficiency with JORSUN high efficient air dissolved system (99.9% air releasing effiency).

● Experience from over 2,000 applications in a variety of fields.

Minimize footprint with JORSUN compact design.

● Save installation time .JORSUN DAF units are deliveryed as prefabricated units . Very easy for installation.

● Quick in response to provide excellent international services.Served clients are over 50 countries aross the world.

● Various constructed material. Carbon steel epoxy coating or FRP lining, stainless steel SUS304 or SUS316L,duplex steel 2205 or 2507.

Specification

Model

Capacity

Power(kw)

Dimension(m)

Pipe connention(DN)

(m3/h)

Recycle
pump

Air
compressor

Skimming
system

Coagulation
mixer

Flocclation mixer

L/L1

W/W1

H/H1

(a)
water
inlet

(b)
water
outlet

(c)
sludge
outlet

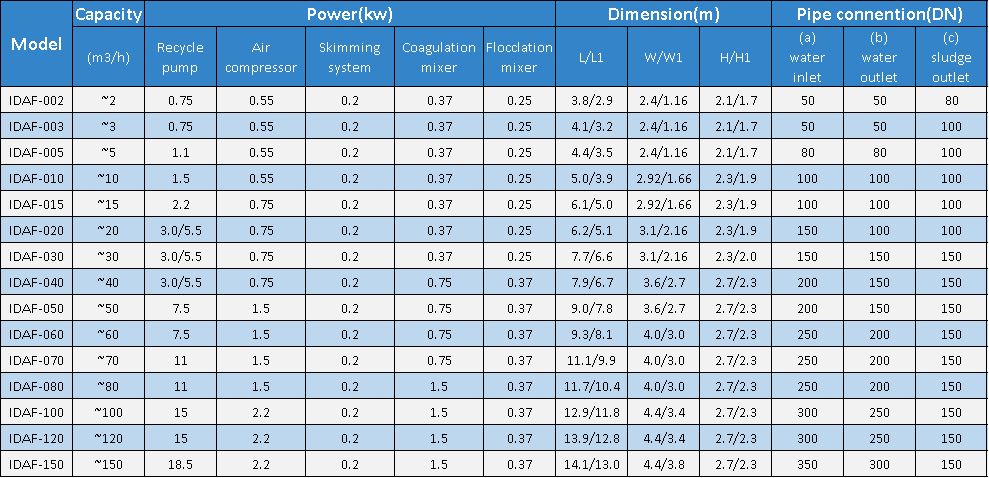

IDAF-002

~2

0.75

0.55

0.2

0.37

0.25

3.8/2.9

2.4/1.16

2.1/1.7

50

50

80

IDAF-003

~3

0.75

0.55

0.2

0.37

0.25

4.1/3.2

2.4/1.16

2.1/1.7

50

50

100

IDAF-005

~5

1.1

0.55

0.2

0.37

0.25

4.4/3.5

2.4/1.16

2.1/1.7

80

80

100

IDAF-010

~10

1.5

0.55

0.2

0.37

0.25

5.0/3.9

2.92/1.66

2.3/1.9

100

100

100

IDAF-015

~15

2.2

0.75

0.2

0.37

0.25

6.1/5.0

2.92/1.66

2.3/1.9

100

100

100

IDAF-020

~20

3.0/5.5

0.75

0.2

0.37

0.25

6.2/5.1

3.1/2.16

2.3/1.9

150

100

100

IDAF-030

~30

3.0/5.5

0.75

0.2

0.37

0.25

7.7/6.6

3.1/2.16

2.3/2.0

150

150

150

IDAF-040

~40

3.0/5.5

0.75

0.2

0.75

0.37

7.9/6.7

3.6/2.7

2.7/2.3

200

150

150

IDAF-050

~50

7.5

1.5

0.2

0.75

0.37

9.0/7.8

3.6/2.7

2.7/2.3

200

150

150

IDAF-060

~60

7.5

1.5

0.2

0.75

0.37

9.3/8.1

4.0/3.0

2.7/2.3

250

200

150

IDAF-070

~70

11

1.5

0.2

0.75

0.37

11.1/9.9

4.0/3.0

2.7/2.3

250

200

150

IDAF-080

~80

11

1.5

0.2

1.5

0.37

11.7/10.4

4.0/3.0

2.7/2.3

250

200

150

IDAF-100

~100

15

2.2

0.2

1.5

0.37

12.9/11.8

4.4/3.4

2.7/2.3

300

250

150

IDAF-120

~120

15

2.2

0.2

1.5

0.37

13.9/12.8

4.4/3.4

2.7/2.3

300

250

150

IDAF-150

~150

18.5

2.2

0.2

1.5

0.37

14.1/13.0

4.4/3.8

2.7/2.3

350

300

150



Model

Capacity

Power(kw)

Dimension(m)

Pipe connention(DN)

(m3/h)

Recycle
pump

Air
compressor

Skimming
system

Coagulation
mixer

Flocclation mixer

L/L1

W/W1

H/H1

(a)
water
inlet

(b)
water
outlet

(c)
sludge
outlet

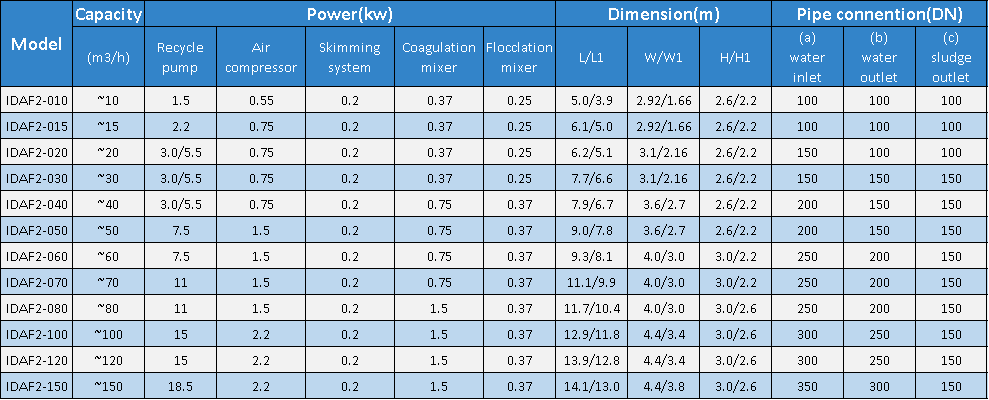

IDAF2-010

~10

1.5

0.55

0.2

0.37

0.25

5.0/3.9

2.92/1.66

2.6/2.2

100

100

100

IDAF2-015

~15

2.2

0.75

0.2

0.37

0.25

6.1/5.0

2.92/1.66

2.6/2.2

100

100

100

IDAF2-020

~20

3.0/5.5

0.75

0.2

0.37

0.25

6.2/5.1

3.1/2.16

2.6/2.2

150

100

100

IDAF2-030

~30

3.0/5.5

0.75

0.2

0.37

0.25

7.7/6.6

3.1/2.16

2.6/2.2

150

150

150

IDAF2-040

~40

3.0/5.5

0.75

0.2

0.75

0.37

7.9/6.7

3.6/2.7

2.6/2.2

200

150

150

IDAF2-050

~50

7.5

1.5

0.2

0.75

0.37

9.0/7.8

3.6/2.7

2.6/2.2

200

150

150

IDAF2-060

~60

7.5

1.5

0.2

0.75

0.37

9.3/8.1

4.0/3.0

3.0/2.2

250

200

150

IDAF2-070

~70

11

1.5

0.2

0.75

0.37

11.1/9.9

4.0/3.0

3.0/2.2

250

200

150

IDAF2-080

~80

11

1.5

0.2

1.5

0.37

11.7/10.4

4.0/3.0

3.0/2.6

250

200

150

IDAF2-100

~100

15

2.2

0.2

1.5

0.37

12.9/11.8

4.4/3.4

3.0/2.6

300

250

150

IDAF2-120

~120

15

2.2

0.2

1.5

0.37

13.9/12.8

4.4/3.4

3.0/2.6

300

250

150

IDAF2-150

~150

18.5

2.2

0.2

1.5

0.37

14.1/13.0

4.4/3.8

3.0/2.6

350

300

150

Remark: To make the most suitable proposal, we will need know flowrate, wastewater source,wastewater quality (SS,BOD,COD,FOG etc ).
